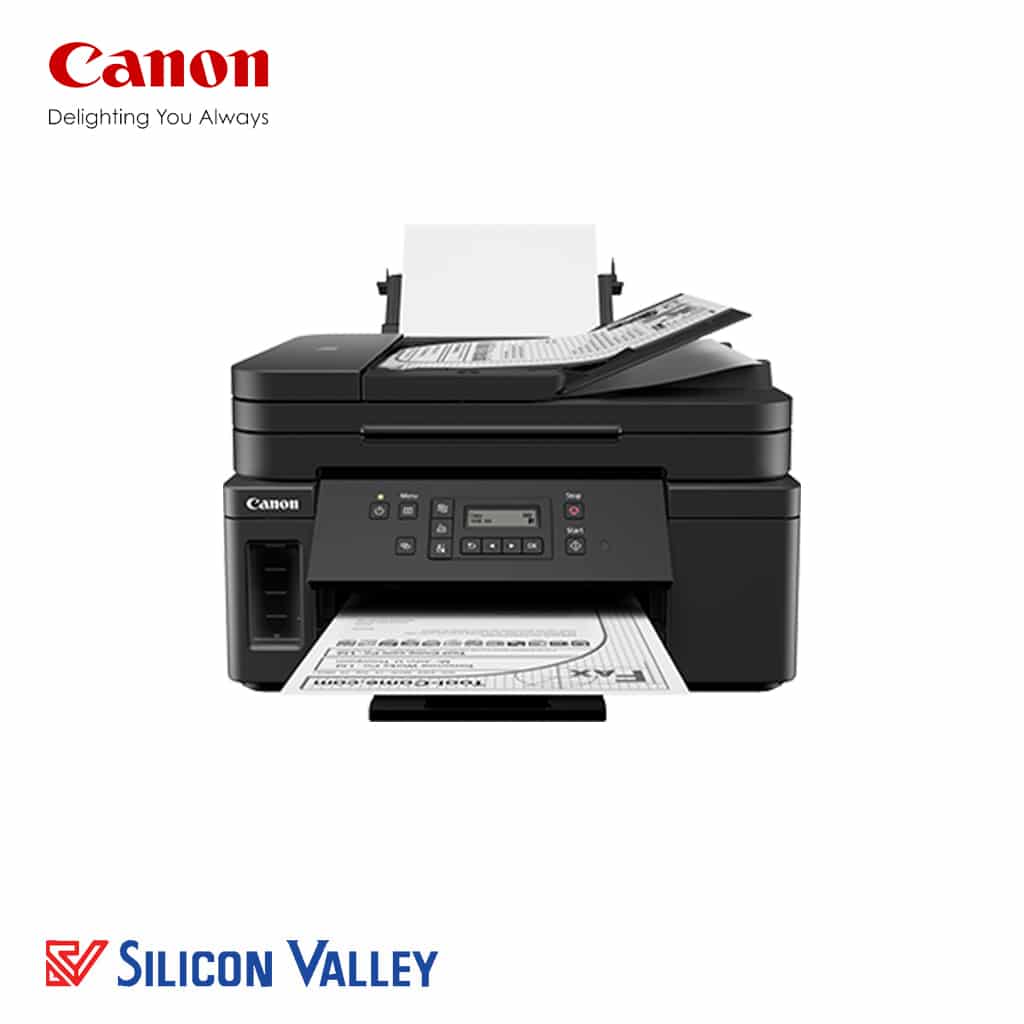

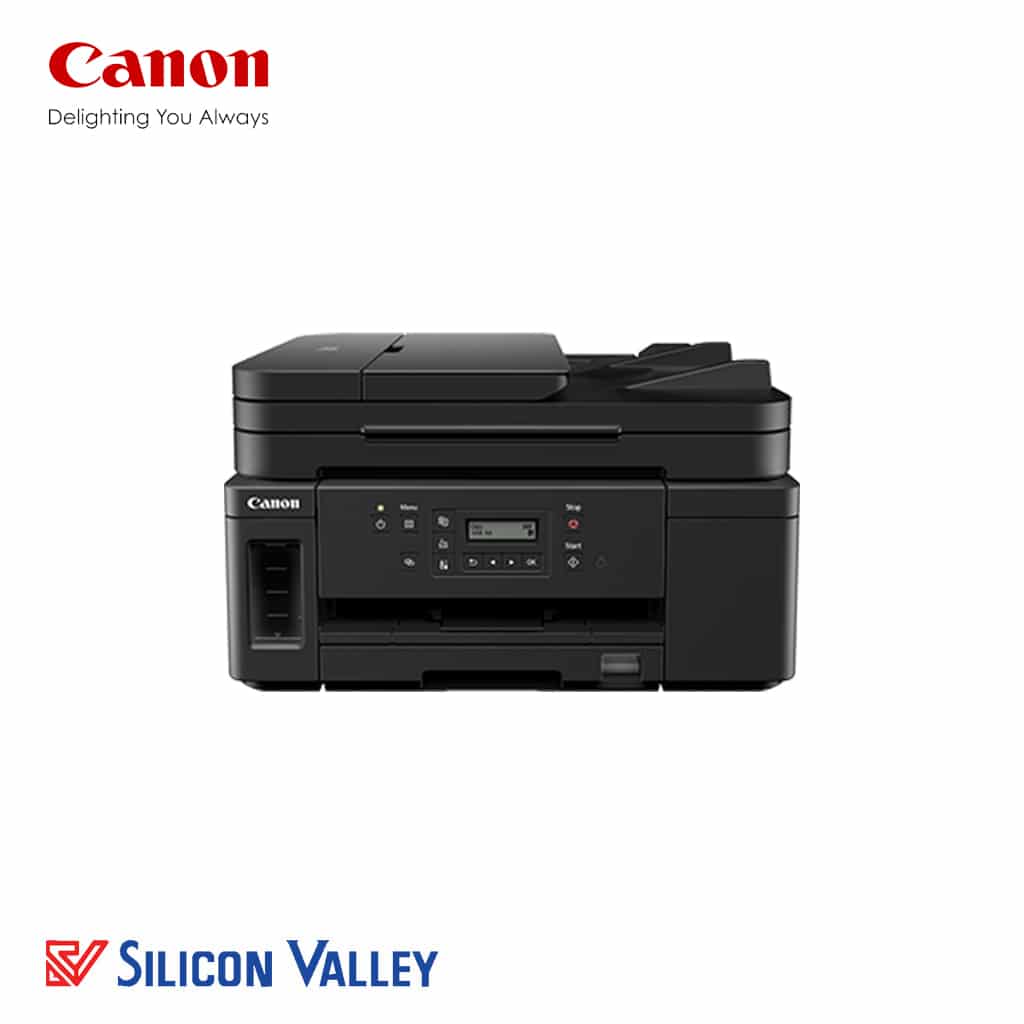

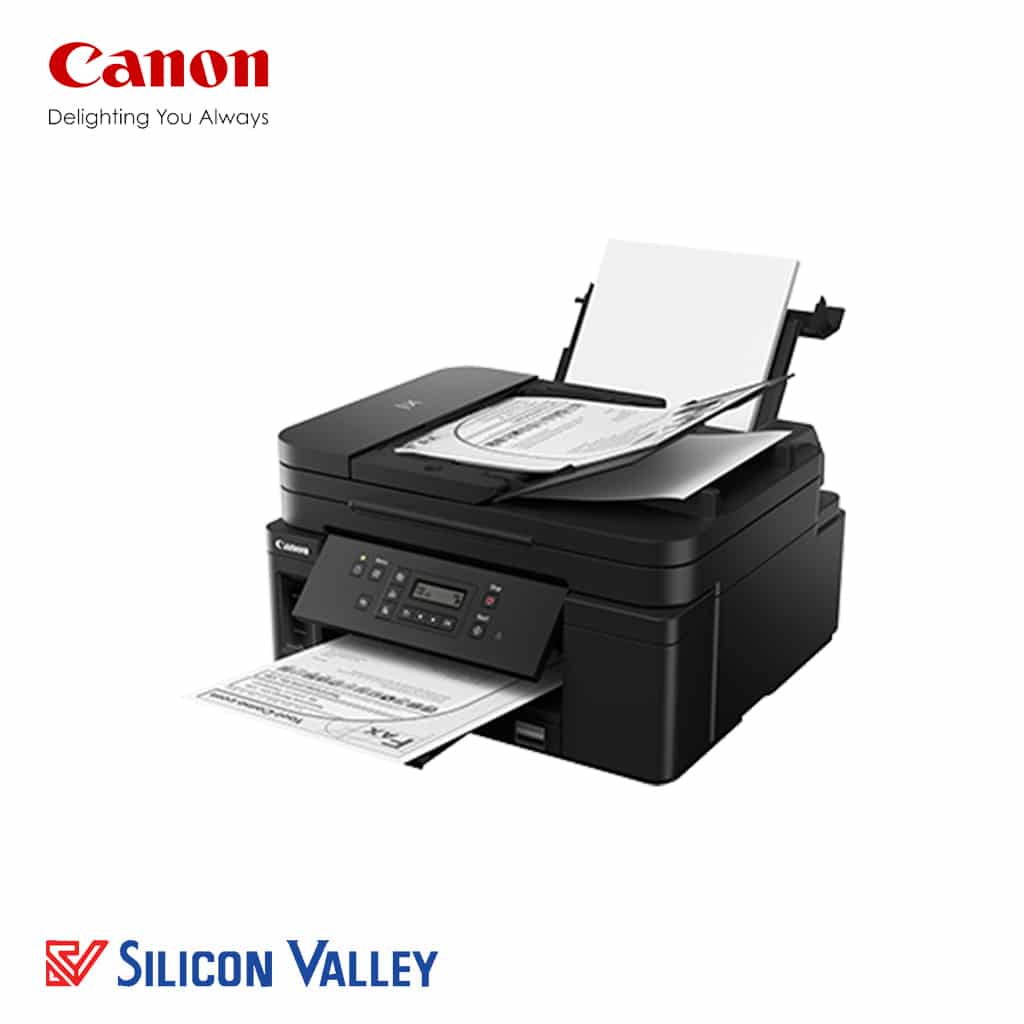

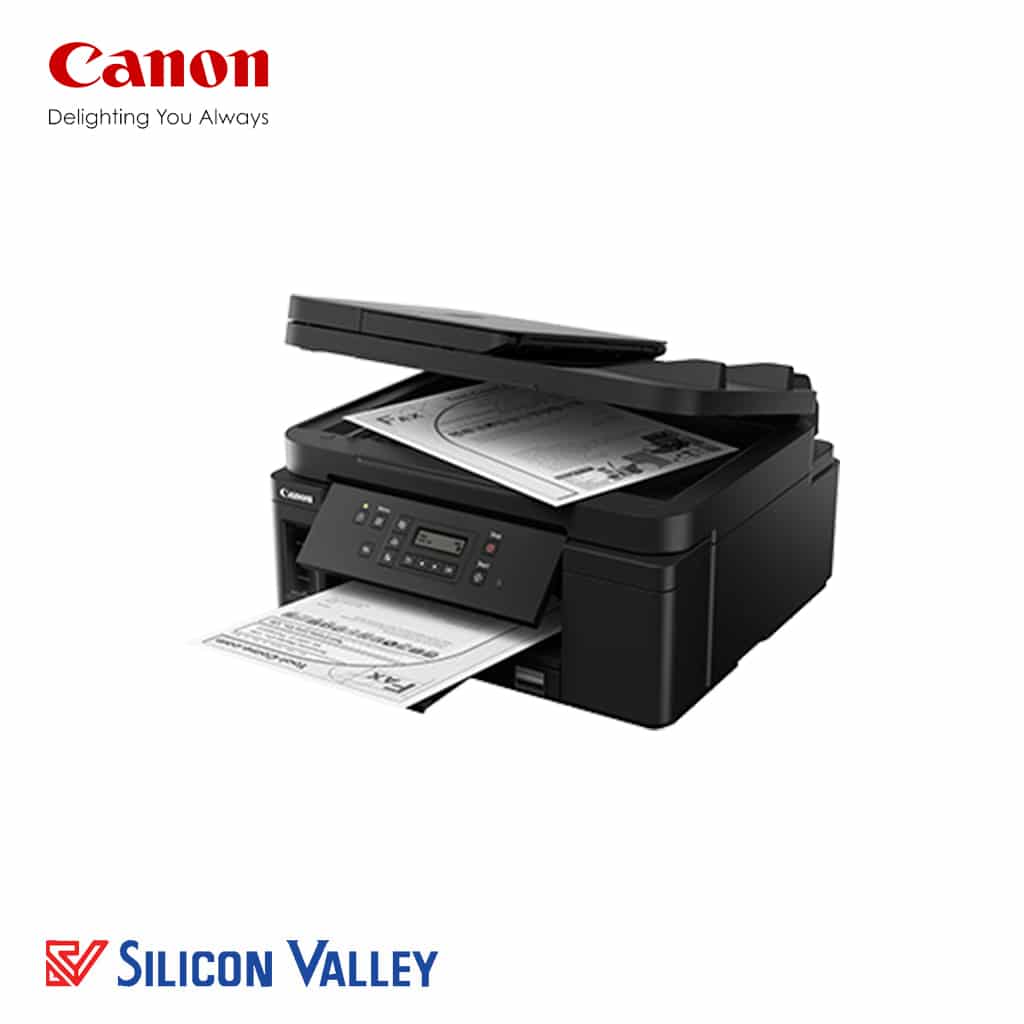

PIXMA GM4070
Refillable Ink Tank Wireless Printer with ADF for High Volume Monochrome Printing
Designed for high volume monochrome printing at low running cost. This printer also has the option for colour document printing.
- Print, Scan, Copy
- ISO standard print speed (A4): up to 13.0ipm black
- Wireless, Wired LAN, Direct Wireless
- Recommended monthly print volume: 150 to 1,500 pages
Print Head / Ink | |
Type | Permanent (Replaceable) |
Number of Nozzles | Black: 640 nozzles (Optional Colour: 1152 nozzles) |
Ink Cartridges | GI-70 (Pigment Black) Optional: CL-741, CL741XL |
Maximum Printing Resolution | 600 (horizontal)*1Â x 1200 (vertical) dpi |
Print Speed*2
Based on ISO/IEC 24734 |
|
Document (ESAT/Simplex) | Approx. 13.0 ipm (black) / 8.8 ipm (colour) |
Photo (4 x 6″) (PP-201/Borderless) | – |
Printable Width | Up to 203.2 mm (8″) |
Printable Area | |
Bordered Printing | #10 Envelope/DL Envelope: Top margin: 8 mm, Bottom margin: 12.7 mm, Left/Right 5.6 mmLTR/LGL: Top margin: 3 mm, Bottom margin: 5 mm, Left margin: 6.4mm, Right margin: 6.3 mmOthers: Top margin: 3 mm, Bottom margin: 5 mm, Left/Right margin: 3.4 mm |
Bordered Auto 2-Sided Printing | Top/Bottom margin: 5 mm Left/Right margin: 3.4 mm (LTR: Left: 6.4 mm, Right: 6.3 mm) |
Support Media | |
Rear Tray | Plain Paper (64 – 105 g/m²) High Resolution Paper (HR-101N) Envelope |
Cassette | Plain Paper (64 – 105 g/m²) |
Paper Size | |
Rear Tray | A4, A5, B5, LTR, LGL, Envelopes (DL, COM10), Card Size (91 x 55 mm)
[Custom size]
width 55 – 215.9 mm, length 89 – 676 mm
* F4 is possible via custom size settings. |
Cassette | A4, A5, B5, LTR
[Custom size]
width 148.0 – 215.9 mm, length 210 – 297 mm
* F4 is possible via custom size settings. |
Paper Handling (Maximum Number) | |
Rear Tray | Plain Paper (A4, 64 g/m²) = 100 High Resolution Paper (HR-101N) = 80 |
Cassette | Plain Paper (A4, 64 g/m²) = 250 |
Support Media for Auto 2-sided printing | |
Type | Plain Paper |
Size | A4, A5, B5, LTR |
Paper Weight | |
Rear Tray | Plain Paper: 64 – 105 g/m² |
Cassette | Plain Paper: 64 – 105 g/m² |
Ink End Sensor | Electrode type and dot count type combined Optional Colour Cartridge; Dot count |
Print Head Alignment | Auto/Manual |
Scan*3
Scanner Type | Flatbed |
Scanner Method | CIS (Contact Image Sensor) |
Optical Resolution*4
Optical resolution scan is available, only when you use TWAIN Driver. |
1200 x 2400 dpi |
Scanning Bit Depth (Input/Output) | |
Grayscale | 16 bit/8 bit |
Colour | RGB each 16 bit/8 bit |
Line Scanning Speed*5 | |
Grayscale | 1.5 ms/line (300 dpi) |
Colour | 3.5 ms/line (300 dpi) |
Maximum Document Size | |
Flatbed | A4/LTR (216 x 297 mm) |
ADF | A4/LTR/LGL |
Copy
Maximum Document Size | A4/LTR |
Compatible Media | |
Size | A4/A5/B5/LTR/LGL/Card Size (91 x 55 mm) |
Type | Plain Paper |
Image Quality | 3 positions (Economy, Standard, High) |
Density Adjustment | 9 positions, Auto intensity (AE copy) |
Copy Speed*6
Based on ISO/IEC 24734 |
|
Document (B&W) (sFCOT/Simplex) / (sESAT/Simplex) | Approx. 12 sec / approx. 10.7 ipm |
Document (ADF): Black ESAT/Simplex | Approx. 11.5 ipm |
Network
Protocol | SNMP, HTTP, TCP/IP (IPv4/IPv6) |
Wired LAN | |
Network Type | IEEE802.3u (100BASE-TX)
IEEE802.3 (10BASE-T) |
Data Rate | 10M/100Mbps (Auto switchable) |
Wireless LAN | |
Network Type | IEEE802.11b/g/n |
Frequency Band | 2.4 GHz |
Channel*7 | 1 – 13 |
Range | Indoor 50 m (depends on the transmission speed and conditions) |
Security | WEP 64/128 bit WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) |
Direct Connection (Wireless LAN) | Available |
Printing Solutions
Canon Print Service (for Android) |
Available |
PIXMA Cloud Link (from smartphone/tablet) |
Available |
Canon PRINT Inkjet/SELPHY (for iOS/for Android) |
Available |
System Requirements*8
Windows 10 / 8.1 / 7 SP1 (operation can only be guaranteed on a PC with a pre-installed Windows 7 or later)Mac: N/A |
General Specifications
Operation Panel | |
Display | 2-Line LCD |
Language | 32 Selectable Languages: Japanese / English / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovakian / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Thai / Croatian / Vietnamese |
ADF | |
Paper Handling (Plain Paper) | A4, LTR = 35, LGL = 5, others = 1 |
Interface | USB 2.0 |
Operating Environment*9 | |
Temperature | 5 – 35°C |
Humidity | 10 – 90% RH (no dew condensation) |
Recommended Environment*10 | |
Temperature | 15 – 30°C |
Humidity | 10 – 80% RH (no dew condensation) |
Storage Environment | |
Temperature | 0 – 40°C |
Humidity | 5 – 95% RH (no dew condensation) |
Quiet Mode | Available |
Acoustic Noise (PC Print) | |
Plain Paper (A4, B/W)*11 | Approx. 50.5 dB(A) |
Power | AC 100-240 V, 50/60 Hz |
Power Consumption | |
OFF | Approx. 0.3 W |
Standby (scanning lamp is off) USB connection to PC |
Approx. 0.8 W |
Standby (all ports connected, scanning lamp is off) [EU only – for ErP Lot 26 regulation] |
Approx. 1.7 W |
Time to enter Standby mode [EU only – for ErP Lot 26 regulation] | Approx. 11 min 9 sec |
Printing*12 USB connection to PC |
Approx. 10 W |
Duty Cycle | Up to 15,000 pages/month |
Dimension (WxDxH) | |
Factory Configuration | Approx. 403 x 369 x 234 mm |
Output/ADF trays extended | Approx. 403 x 701 x 305 mm |
Weight | Approx. 9.2 kg |
Page Yield
Plain Paper (A4 pages) (ISO/IEC 24712 test file)*13 |
Standard: GI-70 PGBK*14: 6,000Economy*15: GI-70 PGBK: 8,300Optional: CL-741: 180 CL-741XL: 400 |
